Product Introduction: Wincor Nixdorf (Diebold Nixdorf) DN Series
15" Openframe Display | Part Numbers: 1750361380 / 01750361380 |
Model: MS MS15XGA401/CVD

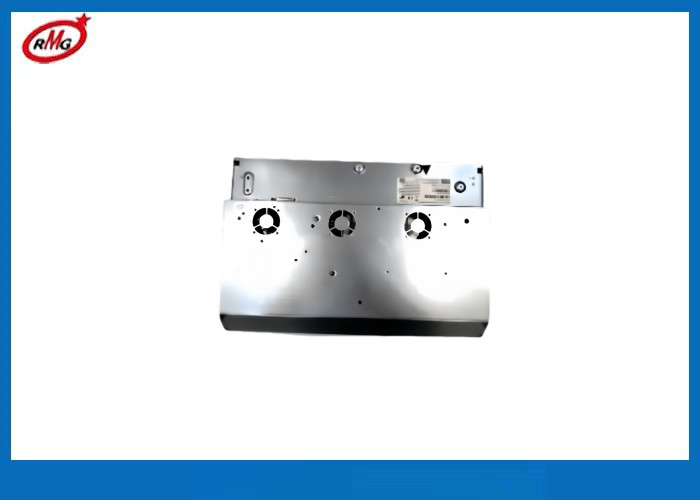

The Wincor Nixdorf (now Diebold Nixdorf) 1750361380 (or
01750361380) 15" Openframe Display is a robust, OEM-certified spare
part designed for Wincor Nixdorf DN Series ATMs and self-service
terminals, including models like DN Vista, DN Cashino, and DN
CashEdge. This MS MS15XGA401/CVD display module serves as the
primary customer interface, delivering sharp visuals, optional
touch functionality, and reliable performance in high-traffic
banking and retail environments.
Key Features:
Model Compatibility: Engineered exclusively for Wincor Nixdorf DN
Series ATMs and hybrid kiosks requiring a 15" display.
Core Specifications:
Display Type: 15" XGA (1024x768) LCD openframe monitor with
anti-reflective coating for enhanced readability.
Brightness: 300 nits (adjustable via firmware; higher brightness
variants available for semi-outdoor use).
Viewing Angle: Wide 170° horizontal/160° vertical angles for clear
visibility from multiple positions.
OEM Replacement: Directly replaces damaged, faded, or
non-functional 15" displays (part numbers 1750361380 and
01750361380).
Touchscreen Integration (Optional):
Supports resistive touch overlay (part number MS MS15XGA401/CVD-T
for touch-enabled configurations).
Enables intuitive PIN entry, on-screen signatures, and interactive
menu navigation.
Durability & Security:
Industrial-Grade Design: VESA 100x100mm mountable, shock-resistant
frame with IP54-rated bezels (dust/splash protection).
Tamper-Resistant Features: Secure fasteners and anti-pry housing to
deter unauthorized access.
Compliance & Certifications:
Meets UL 60950-1, EN 60950, PCI PTS, and Wincor Nixdorf’s factory
standards for safety, EMI/RFI compliance, and data security.
Applications:
ATM & Kiosk Refurbishment: Restores crisp visual output to outdated
or malfunctioning DN Series displays.
Self-Service Terminal Upgrades: Enhances user experience in banking
kiosks, bill payment stations, and retail checkout systems.
Global Deployment: Supports multi-language interfaces,
ADA-compliant accessibility, and 24/7 operation in harsh
environments.
Technical Specifications:
Part Numbers:
1750361380 (Standard, non-touch)
01750361380 (Regional/revised variant; may include touch, higher
brightness, or firmware updates).
Model: MS MS15XGA401/CVD (compatible with DN Series chassis and
bezels).
Video Interface:
Input: VGA (DB-15) or HDMI (variant-dependent; consult technical
documentation).
Power: 12V DC (via internal power board or external adapter; power
consumption ~18W).
Environmental:
Operating Temperature: 0°C to 50°C (32°F to 122°F).
Storage Temperature: -20°C to 60°C (-4°F to 140°F).
Mounting: VESA-compliant for seamless integration into DN Series
bezels, enclosures, or custom kiosk designs.
Why Choose Genuine Wincor Nixdorf (Diebold Nixdorf) Parts?
Precision Engineering: Ensures perfect alignment with DN Series
firmware, touch drivers, and mechanical dimensions.
Reduced Downtime: Minimizes customer frustration with bright,
flicker-free visuals and quick-swap installation.
Long-Term Reliability: Avoids compatibility issues with
non-certified displays that may cause ghosting, uneven
backlighting, or touch inaccuracies.
Regulatory Compliance: Maintains PCI-DSS, GDPR, and accessibility
standards with factory-validated hardware.
